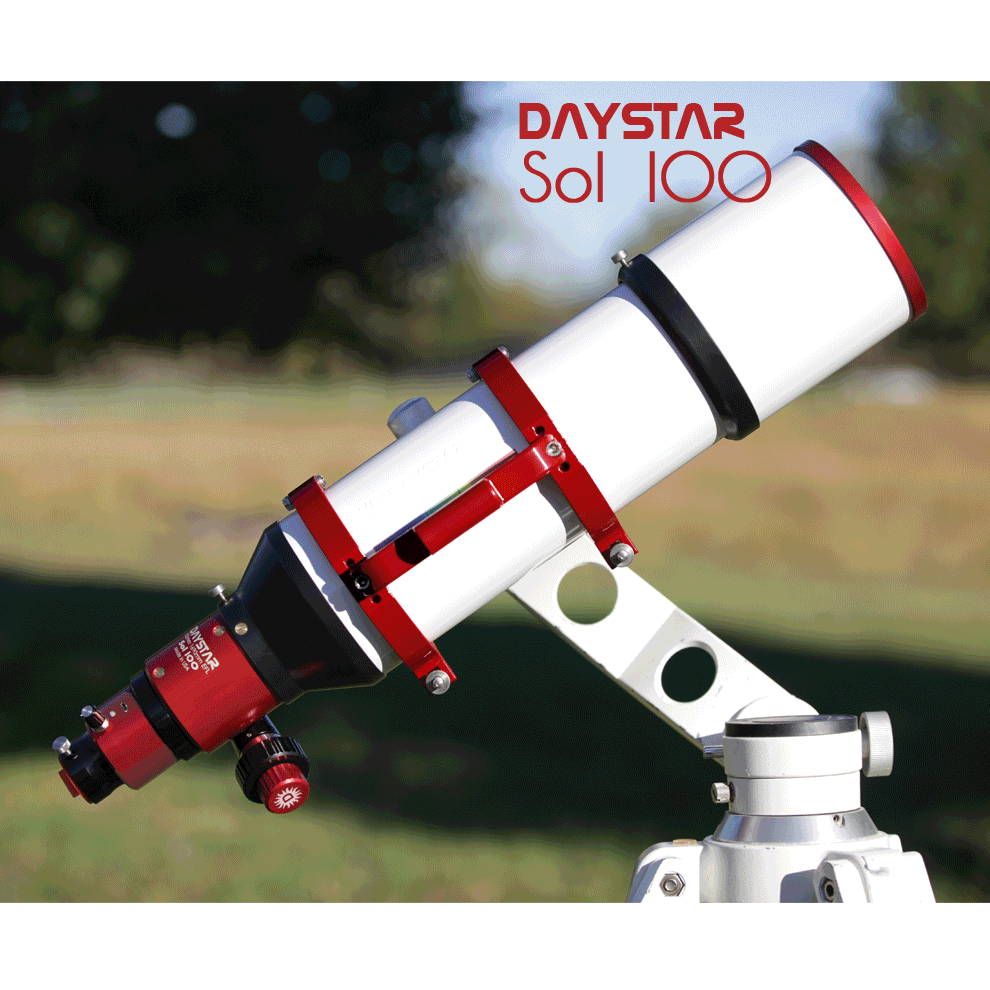

Daystar Sol 100mm Dedicated Hydrogen Alpha Solar Telescope

The Daystar Sol 100mm is a clean-sheet, dedicated Hydrogen Alpha solar telescope engineered as an integrated system rather than a standard telescope with a filter added on.

Its optical train is optimized around the 656nm Hydrogen Alpha wavelength, delivering a full-disk field of view with 100mm of aperture while keeping the instrument compact and outreach-safe.

Key Features

• 100mm dedicated integrated Hydrogen Alpha solar telescope
• Telecentric lens system prescribed and optimized as a cohesive Hydrogen Alpha optical unit
• Full-disk 0.75-degree field of view at 100mm aperture
• Integrated Quark/barlow/blocking-filter structure designed to prevent unsafe removal during outreach use
• Built-in solar finder embedded in the mounting rings for always-aligned aiming
• 12:1 dual-speed Daystar focuser compatible with most third-party focus motors
• Includes mounting rings, dovetail, carry handle with integrated solar finder, imaging Flat Cap diffuser, AC power supply, USB power cable, 1.25-inch eyepiece adapter, and durable hard case
• Made in the USA in Daystar's vertically integrated facility

Technical Specifications

• Aperture: 100mm
• Effective Focal Length: 1690mm
• Focal Ratio: f/16.9
• Field of View: 0.75°, passes full solar disk
• Wavelength: 6562.8 Å
• Tuning: Electronic PID thermal tuning, +/-0.5 Å range
• Settling Time: Approximately 5 minutes
• Blocking Filter: Integrated 18mm
• Clear Exit Aperture: 19mm
• Focus Travel: Camera flush to filter through 2-inch diagonal and eyepiece
• Dovetail: Vixen compatible with 1/4-20 for camera tripod
• Power: USB 5V, 1.5A micro-B connector
• Dimensions: 150mm wide, 163mm tall, 489-613mm long
• OTA Diameter: 111mm
• Dew Shield Diameter: 127mm
• OTA Weight: 6.6 lb / 3 kg
• Weight with Tube Rings: 8 lb / 3.6 kg
• Warranty: 3 years
