Lunt 40mm Telescope Bundle

Lunt 40mm Telescope Bundle

SKU: 40mm Standard Kit

Price: $895.00
List Price: $1,236.99
Price: $895.00
You Save: $341.99 (28%)
5% Off All Orders | Coupon Code: SAVE5 | Ends:
Package
View Cart

Easily portable and a joy to use, the Lunt 40 mm joins the Lunt Telescope lineup as our smallest aperture offering, while providing the power, amazing detail and quality you expect from a Lunt Telescope — all at an impressive ~4.0 mm solar image size!

40mm Ha Telescope w/ B500 blocking filer and Helical focuser. Includes SunLock, 4" dovetail, 12mm eyepiece, and Hard case

Standard Kit / Bundle:

Why This Package

Everything you need, nothing you don't. Every component is built to Lunt's standards and works together straight from the case. The front-mounted tilt-tuned etalon delivers full unobstructed aperture performance at 0.35Å — tighter than any competitor at this aperture class. The mini helical focuser provides smooth, precise focus control with a non-rotating design and brass compression ring. The hard case with custom-fit foam protects every component in transit. And like all Lunt 40mm systems, the Standard is fully double-stack capable — add the LS40FHa at any time to bring combined system bandpass to <0.25Å.

Package Includes

  • LS40THa OTA: 40mm aperture, 400mm FL, f/10. Front-mounted tilt-tuned etalon, 0.35Å bandpass. Full unobstructed aperture. Dedicated H-alpha solar telescope.
  • B600 Blocking Filter: 1.25" diagonal housing, 6mm clear aperture. Proprietary filter stack for safe H-alpha observation.
  • Mini Helical Focuser: Non-rotating design. T2 thread connection. 10mm precision travel. Brass compression ring, locking collar.
  • SunLock Solar Finder: Red dot projection onto glass reticle. Internal 3-point alignment screws. Red anodised aluminium.
  • 4" Vixen Dovetail Plate: Black anodised aluminium. Two 1/4-20 tapped holes. Universal mount compatibility.

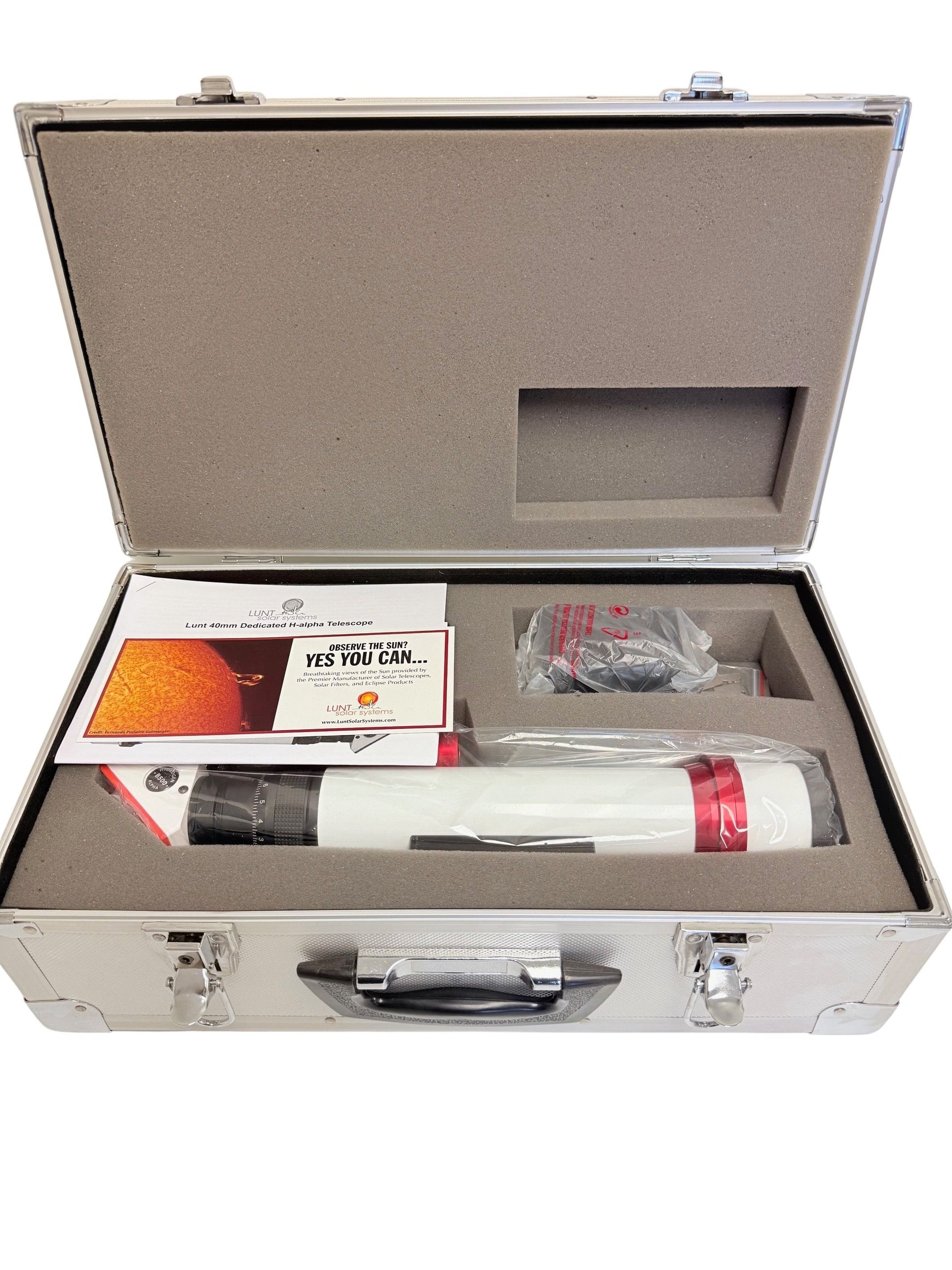

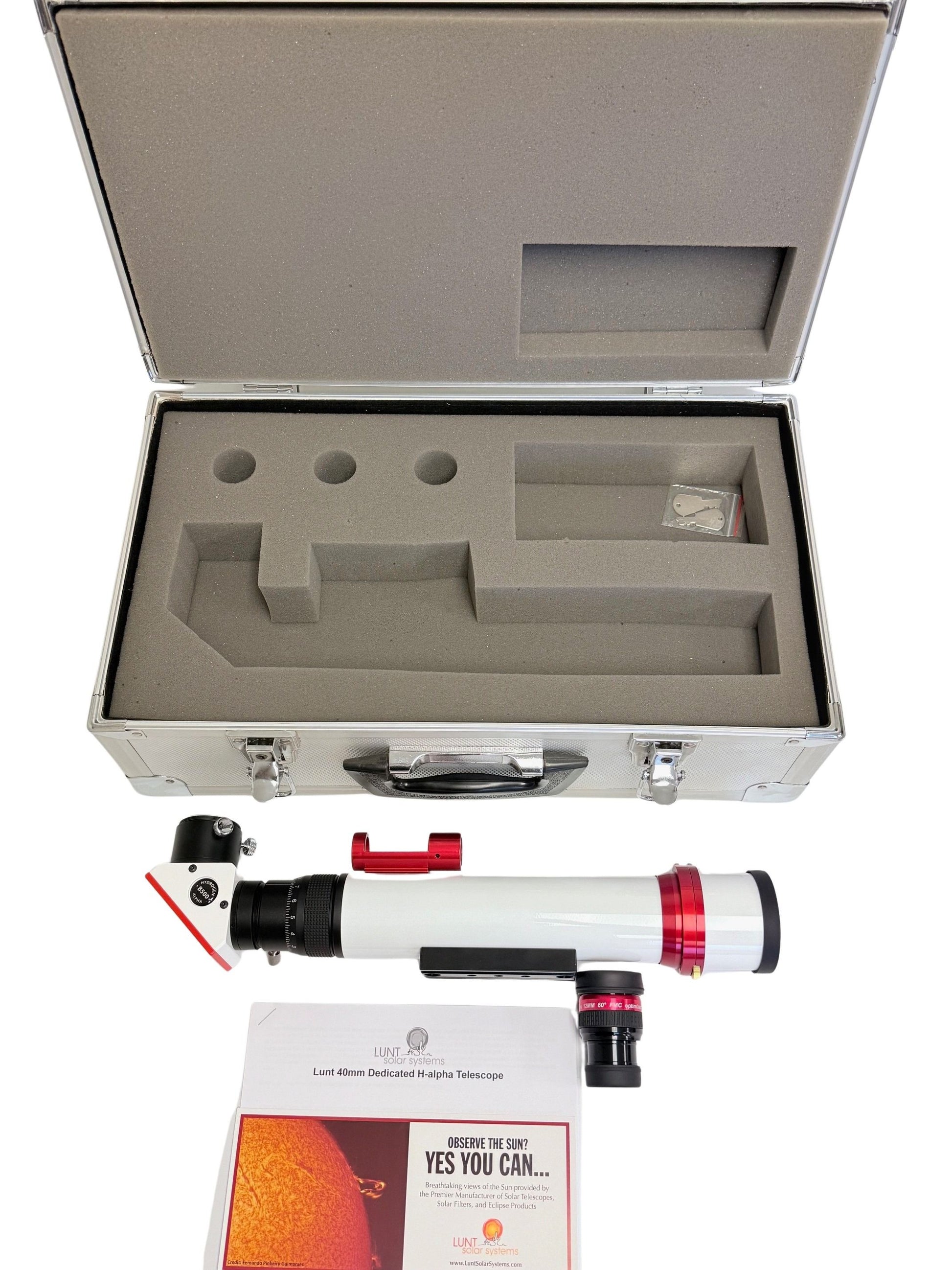

  • Hard Case: Silver aluminium, 18.5" x 10.5" x 7". Custom-fit foam insert.
  • 12mm Flat-Field Eyepiece: 1.25" barrel. 60° FOV. 5-element design. 0.1% AR coatings. 33x on LS40THa.

Key Specifications

  • Aperture: 40mm, full unobstructed
  • Focal Length: 400mm
  • Focal Ratio: f/10
  • Etalon Type: Front-mounted, tilt-tuned
  • Bandpass: 0.35Å — individually verified
  • Double Stack: Optional — add LS40FHa → <0.25Å combined
  • Blocking Filter: B600 (6mm clear aperture)
  • Focuser: Mini helical, non-rotating, T2 thread, brass compression ring
  • Eyepiece: 12mm flat-field, 60° FOV, 0.1% AR — 33x on LS40THa
  • Weight: ~2.6 lbs
  • Telescope Type: Dedicated H-alpha solar — daytime use only

Enhanced Kit / bundle:

Why This Package

If you are thinking about solar imaging, or if you simply want the best mechanical performance available for the LS40THa system, this is your package. The CNC-machined rack-and-pinion focuser is a fundamentally different experience from the helical design — smoother travel, positive lock, and the load capacity for any camera or accessory you own. The B600 blocking filter is the right choice for anyone planning to grow — 6mm clear aperture, imaging-ready from day one. And like all Lunt 40mm systems, the Enhanced is fully double-stack capable — add the LS40FHa at any time to bring combined system bandpass to <0.25Å.

Package Includes

  • LS40THa OTA: 40mm aperture, 400mm FL, f/10. Front-mounted tilt-tuned etalon, 0.35Å bandpass. Full unobstructed aperture. Dedicated H-alpha solar telescope.
  • B600 Blocking Filter: 1.25" diagonal housing, 6mm clear aperture. Imaging-ready — expanded aperture for back-focus clearance and reduced vignetting.
  • 1.25" R&P Focuser (1:1): CNC-machined aluminium/brass. 0.5" travel. Rotatable. Integrated brake with variable drag. Brass compression ring. 6–8 lb capacity.
  • SunLock Solar Finder: Red dot projection onto glass reticle. Internal 3-point alignment screws. Red anodised aluminium.
  • 4" Vixen Dovetail Plate: Black anodised aluminium. Two 1/4-20 tapped holes. Universal mount compatibility.
  • Hard Case: Silver aluminium, 18.5" x 10.5" x 7". Custom-fit foam insert.
  • 12mm Flat-Field Eyepiece: 1.25" barrel. 60° FOV. 5-element design. 0.1% AR coatings. 33x on LS40THa.

Key Specifications

  • Aperture: 40mm, full unobstructed
  • Focal Length: 400mm
  • Focal Ratio: f/10
  • Etalon Type: Front-mounted, tilt-tuned
  • Bandpass: 0.35Å — individually verified
  • Double Stack: Optional — add LS40FHa → <0.25Å combined
  • Blocking Filter: B600 (6mm clear aperture)
  • Focuser: 1.25" CNC R&P (1:1), integrated brake, rotatable, 6–8 lb capacity
  • Eyepiece: 12mm flat-field, 60° FOV, 0.1% AR — 33x on LS40THa
  • Weight: ~2.6 lbs
  • Telescope Type: Dedicated H-alpha solar — daytime use only

Premium Kit / Bundle:

Why This Package

The LS40FHa Double Stack filter is included. The 10:1 dual-speed R&P focuser provides the micro-adjustment precision that sub-quarter-angstrom observing demands. The 6" Vixen dovetail provides the extended rail length to balance the system with the DS filter mounted. Every unit is individually assembled, bench-tested, and monochromator-verified before leaving Tucson.

Package Includes

  • LS40THa OTA: 40mm aperture, 400mm FL, f/10. Front-mounted tilt-tuned etalon, 0.35Å bandpass. Full unobstructed aperture. Dedicated H-alpha solar telescope.
  • LS40FHa Double Stack: 40mm front-mounted tilt-tuned etalon. Combined system bandpass <0.25Å — two 0.35Å etalons in series. No central obstruction. Includes adapter. ~1 lb.
  • B600 Blocking Filter: 1.25" diagonal housing, 6mm clear aperture. Optimised for LS40 focal length and image scale.
  • 1.25" R&P Focuser (10:1 dual-speed): CNC-machined aluminium/brass. Integrated brake with variable drag. Rotatable. 6–8 lb capacity.
  • SunLock Solar Finder: Red dot projection onto glass reticle. Internal 3-point alignment screws. Red anodised aluminium.
  • 6" Vixen Dovetail Plate: 150mm length, black anodised aluminium. Three 1/4-20 tapped holes. Extended rail for balanced mounting with DS filter.
  • Hard Case: Silver aluminium, 18.5" x 10.5" x 7". Custom-fit foam insert.
  • 7.2–21.5mm Zoom Eyepiece: 7 elements/4 groups. 0.1% AR coatings. 15mm eye relief. 53°–40° FOV. Near-parfocal.

Key Specifications

  • Aperture: 40mm, full unobstructed
  • Focal Length: 400mm
  • Focal Ratio: f/10
  • Etalon Type: Dual front-mounted tilt-tuned (LS40THa + LS40FHa)
  • Single Stack Bandpass: 0.35Å — individually verified
  • Double Stack Bandpass: <0.25Å combined — two 0.35Å etalons in series
  • Blocking Filter: B600 (6mm clear aperture)
  • Focuser: 1.25" CNC R&P, 10:1 dual-speed, integrated brake, rotatable
  • Eyepiece: 7.2–21.5mm zoom (19x–56x on LS40THa)
  • Weight: ~2.6 lbs OTA + ~1 lb DS filter
  • Telescope Type: Dedicated H-alpha solar — daytime use only

Telescope Specifications:

Telescope Type: Dedicated H-alpha

Universal Capabilities: H-alpha

Aperture: 40 mm

Objective Type: Custom Doublet Optimized at 656 nm

Objective Coating: Ion Assist Ultra-Narrowband AR (656 nm)

Focal Ratio: F/10

Focal Length: 400 mm

Focuser Options: Helical or Feather Touch

Mounting: Mounting Foot

Storage: Box with Fitted Foam, Hard Case Optional

H-alpha Etalon Type: Internal Dedicated

Etalon Wavelength: 656.28 nm

Etalon Bandpass: <0.7 Å Single Stack, <0.5 Å Double Stack

Etalon Material: UV Grade Fused Silica

Etalon Tuning: Tilt

Doppler Shifting: Instant

Blocking Filter Size: 5 mm, 6 mm, 12 mm, Diagonal

Blocking Filter Bandpass: 6 Å

Sun Finder: TeleVue Sol Searcher built in
